F-theta Scan Lens For CO2 Laser

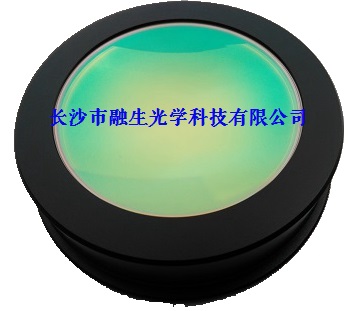

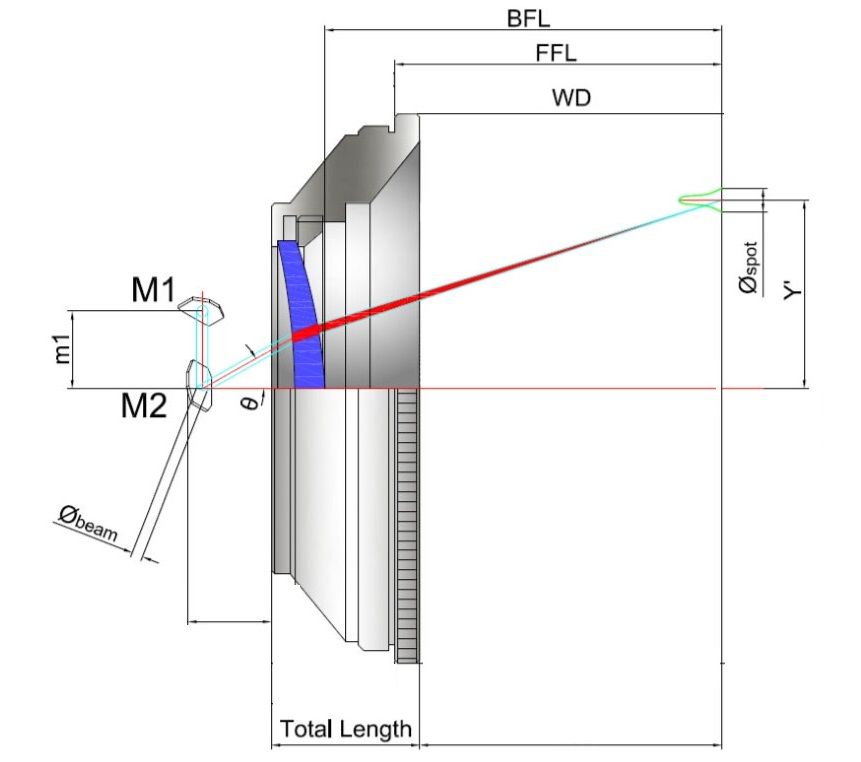

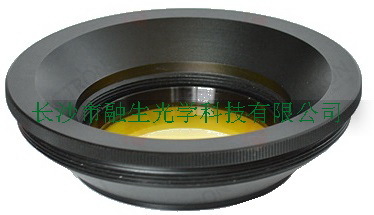

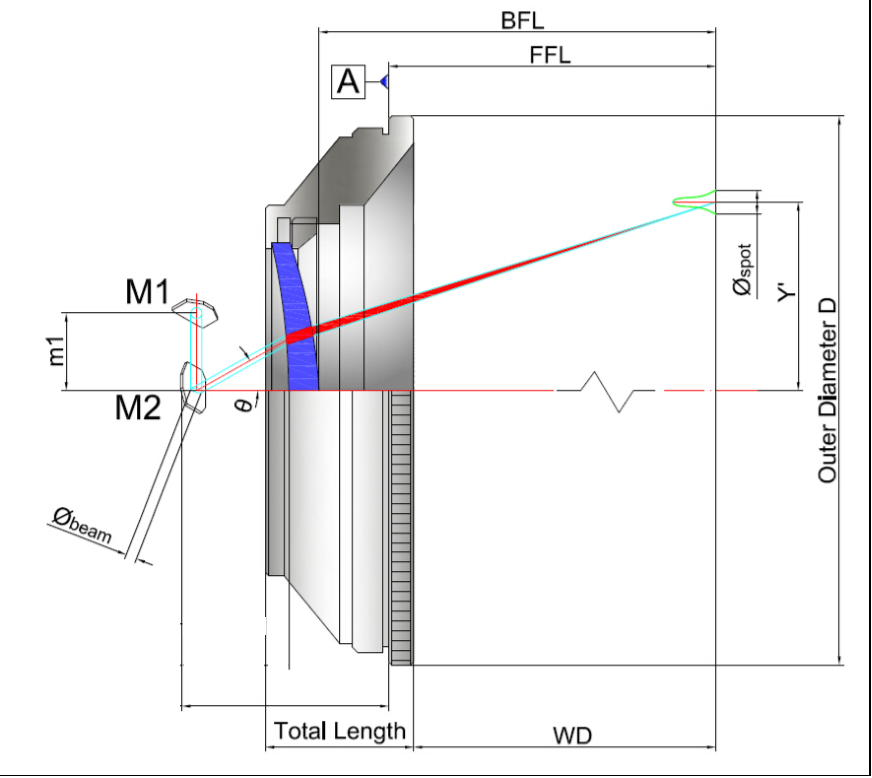

F-theta scan lens is also called flat field lens or the linear lens.The radial image heightequals to focal length of the lens
multiplied by the angle of the chief ray makes in the object space.While General focusing lenses deliver a focused
spot to only one point,They deliver a focused spot to many points on a scan field or workpiece.

The applications :Laser Marking; Engraving; Rapid prototyping; Drilling and Cutting systems .

I.Singlet F-theta Scan Lens For CO2 Lase-Input beam 10mm (Wavelength:10.6um)

Scan EFL Input Scan Center Edge Outer Working

Product ID Field Beam Angel Spot Size Spot Size DiaXL Distance

（mm） (mm) Φ(mm ) （±^o） Φ(µm) Φ(µm) (mm) (mm)

SL1-10.6-44Z-10-D10 10X10 44 10 28^o 93 99 Φ89X24 40.0

SL1-10.6-50Z-12-D10 12X12 50 10 28^o 50 56 Φ89X24 45.0

SL1-10.6-52Z-35-D10 35X35 52 10 28^o 126 130 Φ89X24 35.36

SL1-10.6-75Z-50-D10 50X50 75 10 28^o 215 242 Φ89X24 57.82

SL1-10.6-100Z-70-D10 70X70 100 10 28^o 180 190 Φ89X24 78.69

SL1-10.6-131Z-90-D10 90X90 131 10 25^o 200 242 Φ89X24 122.0

SL1-10.6-150Z-110-D12 110X110 150 12 28^o 276 311 Φ89X24 129.96

SL1-10.6-200Z-140-D15 140X140 200 15 28^o 300 376 Φ89X24 181.17

SL1-10.6-250Z-175-D15 175X175 250 15 28^o 320 395 Φ89X24 232.73

SL1-10.6-300Z-210-D12 210X210 300 12 28^o 500 630 Φ89X24 283.62

SL1-10.6-360Z-250-D12 250X250 360 12 28^o 475 481 Φ89X24 344.66

SL1-10.6-433Z-300-D12 300X300 433 12 28^o 520 760 Φ89X24 414.48

SL1-10.6-450Z-330-D14 330X330 450 14 28^o 622 752 Φ89X24 446.12

SL1-10.6-480Z-350-D14 350X350 480 14 28^o 670 890 Φ89X24 464.5

SL1-10.6-573Z-430-D12 430X430 573 12 28^o 930 1028 Φ89X24 559.13

SL1-10.6-720Z-520-D12 520X520 720 12 28^o 1152 1382 Φ89X24 729.14

SL1-10.6-934Z-680-D12 680X680 934 12 28^o 1554 1696 Φ89X24 920.0

SL1-10.6-977Z-700-D12 700X700 977 12 28^o 1553 1696 Φ89X24 974.8

SL1-10.6-1191Z-770-D12 770X770 1191 12 25^o 1916 2120 Φ89X24 1610.0

SL1-10.6-1150Z-800-D14 800X800 1150 14 26.5^o 1570 1700 Φ89X24 1137.42

SL1-10.6-1650Z-1150-D12 1150X1150 1650 12 28^o 2660 2880 Φ89X24 1617.41

SL1-10.6-2128Z-1380-D12 1380X1380 2128 12 25^o 3420 3880 Φ89X24 2176.0

Ⅱ.Singlet F-theta Scan Lens For CO2 Lase-Input beam 20mm (Wavelength:10.6um)



Scan EFL Input Scan Center Edge Outer Working

Product ID Field Beam Angel Spot Size Spot Size DiaXL Distance

(mm) (mm) Φ(mm) （±°） Φ(µm) Φ(µm) (mm) (mm)

SL1-10.6-100Z-70-D20 70X70 100 20 28^o 150 160 Φ89X24 88.5

SL1-10.6-200Z-135-D20 135X135 200 20 28^o 304 470 Φ89X24 193.66

SL1-10.6-200Z-145-D20 145X145 200 20 28^o 304 472 Φ89X24 193.66

SL1-10.6-250Z-175-D20 175X175 250 20 28^o 319 294 Φ89X24 232.73

SL1-10.6-420Z-300-D20 300X300 420 20 28^o 450 600 Φ89X24 403.6

SL1-10.6-448Z-320-D20 320X320 448 20 28^o 445 455 Φ89X24 440.0

SL1-10.6-480Z-350-D20 350X350 480 20 28^o 420 710 Φ89X24 479.0

SL1-10.6-573Z-365-D20 365X365 573 20 28^o 540 740 Φ89X24 576.55

SL1-10.6-573Z-400-D20 400X400 573 20 28^o 540 740 Φ89X24 576.55

SL1-10.6-574Z-420-D20 420X420 574 20 28^o 540 740 Φ89X24 576.55

SL1-10.6-620Z-450-D20 450X450 620 20 28^o 490 590 Φ89X24 622.0

SL1-10.6-720Z-560-D20 560X560 720 20 28^o 700 960 Φ89X24 719.6

SL1-10.6-742Z-540-D20 540X540 742 20 28^o 752 848 Φ102X24 744.0

SL1-10.6-830Z-600-D20 600X600 830 20 28^o 818 894 Φ89X24 816.9

SL1-10.6-1100Z-700-D20 700X700 1100 25 25^o 846 1166 Φ89X24 1123.0

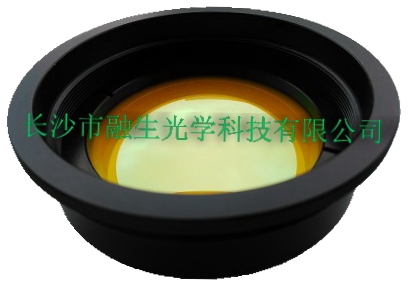

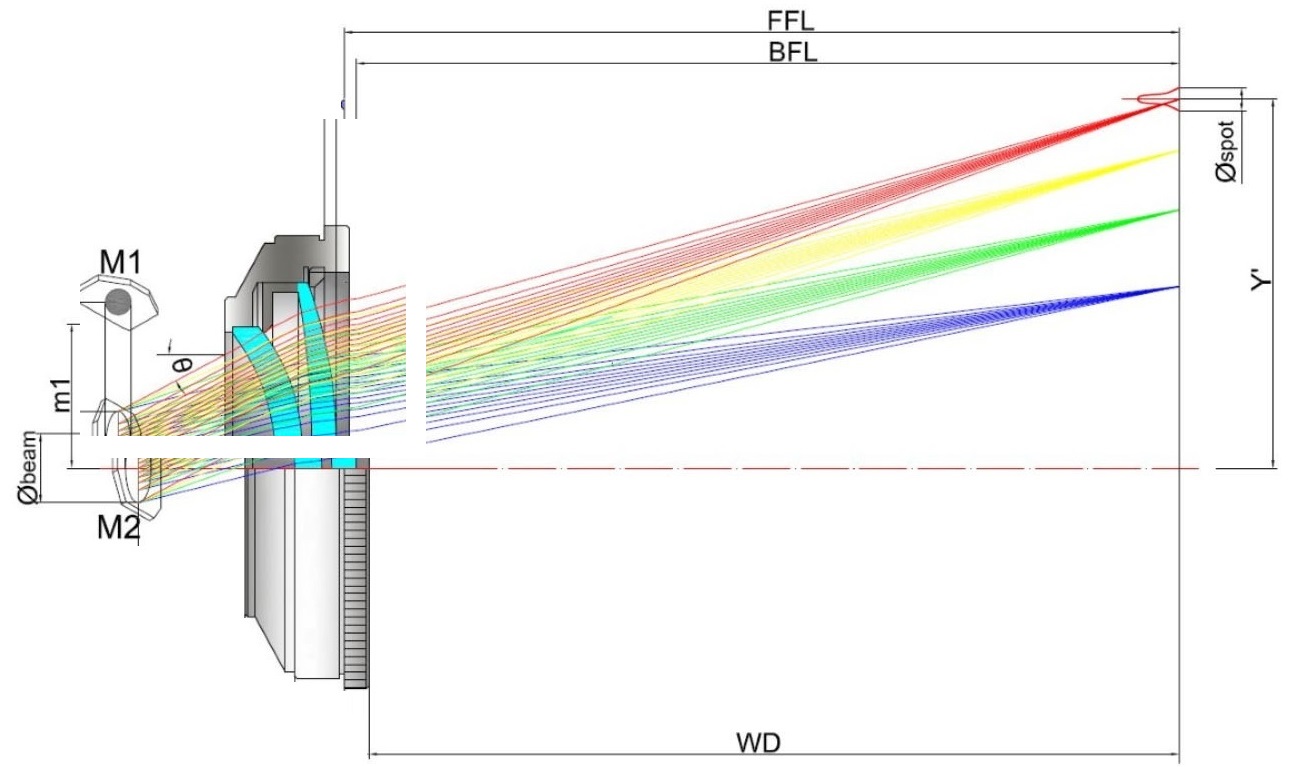

   III. Doublet F-Theta Scan Lens For CO2 laser



Scan EFL Input Scan Center Edge Working Outer Wave-

Product ID Field Beam Angel Spot Size Spot Size Distance DiaXL length

(mmxmm) (mm) Φ(mm ) (±°) Φ(µm) Φ(µm) (mm) (mm) (µm)

SL2-10.6-100Z-70-D14 70X70 100 14 28.5^o 116 165 105.6 Φ92X31 10.6µm

SL2-10.6-150Z-105-D14 105X105 150 14 28^o 171 172 161.7 Φ90X25 10.6µm

SL2-10.6-170Z-110-D20 110X110 170 20 25^o 150 151 177.1 Φ90X31 10.6µm

SL2-10.6-200Z-140-D14 140X140 200 14 28.8^o 188 199 229.4 Φ90X35.5 10.6µm

SL2-10.6-250Z-175-D15 175X175 250 15 28^o 250 255 286.1 Φ94X34 10.6µm

SL2-10.6-300Z-168-D20 168X168 300 20 22.5° 288 304 328.3 Φ110X50 10.6µm

SL2-10.6-300Z-210-D20 210X210 300 20 28^o 250 270 327.8 Φ110X50 10.6µm

SL2-10.6-360Z-250-D15 250X250 360 15 28^o 370 389 393.0 Φ110X45 10.6µm

SL2-10.6-420Z-300-D20 300X300 420 20 28^o 408 427 466.0 Φ109X53 10.6µm

SL2-10.6-560Z-300-D30 300X300 560 30 21.3^o 364 382 604.4 Φ120X37 10.6µm

SL2-10.6-490Z-350-D18 350X350 490 18 28^o 410 434 535.2 Φ96X23 10.6µm

SL2-10.6-560Z-400-D30 400X400 560 30 25^o 364 382 604.8 Φ120X37 10.6µm

SL2-10.6-700Z-500-D30 500X500 700 30 27.8^o 230 260 763.7 Φ118X37 10.6µm

SL2-10.6-700Z-600-D20 600X600 700 20 27^o 420 440 741.5 Φ98X25 10.6µm

SL2-10.6-60G-35-D12 35X35 60 12 25^o 70 80 57.8 Φ89X23 10.6µm

SL2-10.6-80G-50-D14 50X50 80 14 25^o 91 135 75.7 Φ90X30 10.6µm

SL2-10.6-122G-70-D14 70X70 122 14 23^o 133 165 135.9 Φ89X24.5 10.6µm

SL2-10.6-170G-110-D10 110X110 170 10 23^o 222 227 185.0 Φ90X39 10.6µm

SL2-10.6-220G-140-D14 140X140 220 14 25^o 239 247 243.8 Φ89X36 10.6µm

SL2-10.6-275G-175-D10 175X175 275 10 22^o 380 400 302.8 Φ92X32.5 10.6µm

SL2-10.6-300G-210-D14 210X210 300 14 20^o 420 433 334.9 Φ90X35 10.6µm

SL2-10.6-360G-250-D15 250X250 360 15 27.5^o 468 502 396.7 Φ98X42 10.6µm

SL2-10.6-430G-300-D12 300X300 430 12 28^o 467 470 463.2 Φ100X50 10.6µm

SL2-10.6-420G-300-D20 300X300 420 20 20^o 340 350 470.0 Φ100X35 10.6µm

SL2-10.6-485G-350-D15 350X350 485 15 28^o 626 676 530.5 Φ94X24.5 10.6µm

   Material: Z- ZnSe ( transmit both 10.6um and visible )；G-GaAs( only transmit 10.6um ).

	Scan	EFL	Input	Scan	Center	Edge	Outer	Working
Product ID	Field	EFL	Beam	Angel	Spot Size	Spot Size	DiaXL	Distance
	（mm）	(mm)	Φ(mm )	（±^o）	Φ(µm)	Φ(µm)	(mm)	(mm)
SL1-10.6-44Z-10-D10	10X10	44	10	28^o	93	99	Φ89X24	40.0
SL1-10.6-50Z-12-D10	12X12	50	10	28^o	50	56	Φ89X24	45.0
SL1-10.6-52Z-35-D10	35X35	52	10	28^o	126	130	Φ89X24	35.36
SL1-10.6-75Z-50-D10	50X50	75	10	28^o	215	242	Φ89X24	57.82
SL1-10.6-100Z-70-D10	70X70	100	10	28^o	180	190	Φ89X24	78.69
SL1-10.6-131Z-90-D10	90X90	131	10	25^o	200	242	Φ89X24	122.0
SL1-10.6-150Z-110-D12	110X110	150	12	28^o	276	311	Φ89X24	129.96
SL1-10.6-200Z-140-D15	140X140	200	15	28^o	300	376	Φ89X24	181.17
SL1-10.6-250Z-175-D15	175X175	250	15	28^o	320	395	Φ89X24	232.73
SL1-10.6-300Z-210-D12	210X210	300	12	28^o	500	630	Φ89X24	283.62
SL1-10.6-360Z-250-D12	250X250	360	12	28^o	475	481	Φ89X24	344.66
SL1-10.6-433Z-300-D12	300X300	433	12	28^o	520	760	Φ89X24	414.48
SL1-10.6-450Z-330-D14	330X330	450	14	28^o	622	752	Φ89X24	446.12
SL1-10.6-480Z-350-D14	350X350	480	14	28^o	670	890	Φ89X24	464.5
SL1-10.6-573Z-430-D12	430X430	573	12	28^o	930	1028	Φ89X24	559.13
SL1-10.6-720Z-520-D12	520X520	720	12	28^o	1152	1382	Φ89X24	729.14
SL1-10.6-934Z-680-D12	680X680	934	12	28^o	1554	1696	Φ89X24	920.0
SL1-10.6-977Z-700-D12	700X700	977	12	28^o	1553	1696	Φ89X24	974.8
SL1-10.6-1191Z-770-D12	770X770	1191	12	25^o	1916	2120	Φ89X24	1610.0
SL1-10.6-1150Z-800-D14	800X800	1150	14	26.5^o	1570	1700	Φ89X24	1137.42
SL1-10.6-1650Z-1150-D12	1150X1150	1650	12	28^o	2660	2880	Φ89X24	1617.41
SL1-10.6-2128Z-1380-D12	1380X1380	2128	12	25^o	3420	3880	Φ89X24	2176.0
