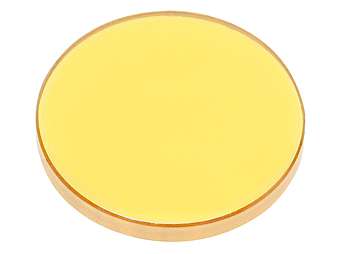

Beam Combiners for Co2 laser

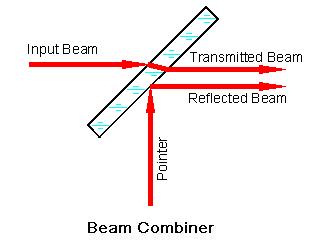

Beam combiners combine two wavelengths of light -- one in transmission and one in reflection-- onto a single beam path.Our beam combiners are optimally coated to transmit infrared light(10.6μm)and reflect visible light(650nm).
The coatings： T>99%@10.6um,R>85%@650nm,45oAOI.
| Product ID |
Substrates |
Diameter |
Thickness |
Wavelength |
|
Material |
(mm) |
(mm) |
(μm) |
|
|
BC-10.6-19.05-2 |
ZnSe |
19.05 |
2.0 |
10.6μmT/650nmR |
|
BC-10.6-20-1.5 |
ZnSe |
20.00 |
1.5 |
10.6μmT/650nmR |
|
BC-10.6-20-2 |
ZnSe |
20.00 |
2.0 |
10.6μmT/650nmR |
|
BC-10.6-25-3 |
ZnSe |
25.00 |
3.0 |
10.6μmT/650nmR |
|
BC-10.6-25.4-3 |
ZnSe |
25.40 |
3.0 |
10.6μmT/650nmR |
|
BC-10.6-38.1-3 |
ZnSe |
38.10 |
3.0 |
10.6μmT/650nmR |
|
