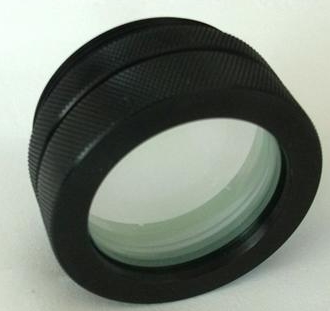

Doublelet Focusing Lens for 1064nm laser
Compared with the singlet Focusing lens ,The focusing spot of the doublelet Focusing Lens more tiny .It has higher energy density.It can meet the need of precision processing such as cutting. It has a high transmittancefor laser and good heat dissipation,so can be used for high power laser.
| 产品编号 |
焦距 |
通光口径 |
镜头外径 |
镜座长度 |
工作距离 |
波长 |
|

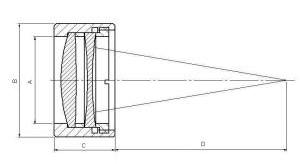

Product ID |
EFL(mm) |
L1(mm) |
L2(mm) |
L(mm) |
WD(mm) |
(nm) |
|
L2-1064+30FL |
30.0 |
14.0 |
20.0 |
11.0 |
26.5 |
1064nm |
|
L2-1064+35FL |
35.0 |
16.0 |
20.0 |
11.0 |
32.0 |
1064nm |
|
L2-1064+40FL |
40.0 |
20.0 |
23.0 |
14.0 |
29.8 |
1064nm |
|
L2-1064+50FL |
50.0 |
20.0 |
30.0 |
22.0 |
40.0 |
1064nm |
|
L2-1064+60FL |
60.0 |
20.0 |
23.0 |
14.0 |
54.5 |
1064nm |
|
L2-1064+65.8FL |
65.8 |
33.0 |
41.0 |
24.0 |
57.40 |
1064nm |
|
L2-1064+70.8FL |
70.8 |
26.0 |
28.0 |
22.5 |
64.9 |
1064nm |
|
L2-1064+80.6FL |
80.6 |
46.0 |
60.0 |
24.5 |
64.5 |
1064nm |
|
L2-1064+85.3FL |
85.3 |
26.0 |
28.0 |
22.5 |
80.0 |
1064nm |
|
L2-1064+100.2FL |
100.2 |
31.0 |
41.0 |
22.0 |
88.30 |
1064nm |
|
L2-1064+100.6FL |
100.6 |
40.0 |
48.0 |
22.5 |
87.5 |
1064nm |
|
L2-1064+120FL |
120.0 |
48.0 |
54.0 |
22.0 |
112.2 |
1064nm |
|
L2-1064+149FL |
148.9 |
45.0 |
50.0 |
59.0 |
152.7 |
1064nm |
|
L2-1064+153FL |
153.4 |
68.0 |
75.0 |
43.0 |
129.3 |
1064nm |
|
L2-1064+162.6FL |
162.6 |
35.0 |
41.0 |
22.0 |
153.70 |
1064nm |
|
L2-1064+170FL |
170.0 |
45.0 |
50.0 |
43.0 |
169.8 |
1064nm |
|
L2-1064+200FL |
200.0 |
68.0 |
75.0 |
23.0 |
185.9 |
1064nm |
|
