CCD视觉定位用合束镜-355nm/340-360nm
The Beam Combiners for visual positioning - 355nm/340-360nm

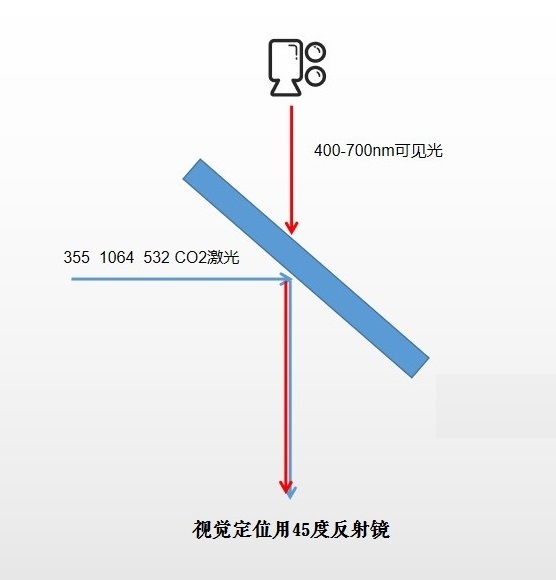

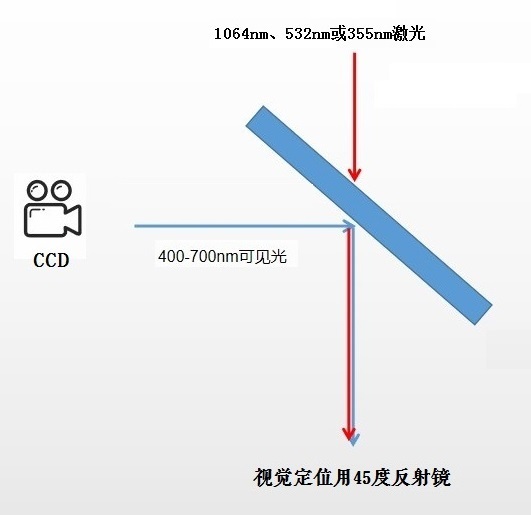

图一激光透过，CCD反射 图二激光反射，CCD透过
| 产品编号 | 材料 | 产品规格 | 透过 | 反射 |
| Product ID | Material | LXWXT/DiaXT (mm) | HT 45oAOI | HR 45oAOI |
| BVF-355T-120-120-4 | 石英/Fused Silica | 120X120X4 | 355nm | 400-700nm |
| BVF-355T-110-110-3 | 石英/Fused Silica | 110X110X3 | 355nm | 400-700nm |
| BVF-355T-100-80-3 | 石英/Fused Silica | 100X80X3 | 355nm | 400-700nm |
| BVF-355T-90-76-3 | 石英/Fused Silica | 90x76X3 | 355nm | 400-700nm |
| BVF-355T-80-80-3 | 石英/Fused Silica | 80x80X3 | 355nm | 400-700nm |
| BVF-355T-45-3 | 石英/Fused Silica | Φ45X3 | 355nm | 400-700nm |
| BVF-355T-40-3 | 石英/Fused Silica | Φ40X3 | 355nm | 400-700nm |
| BVF-355T-30-3 | 石英/Fused Silica | Φ30X3 | 355nm | 400-700nm |
| BVF-1355T-25-3 | 石英/Fused Silica | Φ25X3 | 355nm | 400-700nm |
| BVF-355R-120-120-4 | 石英/Fused Silica | 120X120X4 | 400-700nm | 355nm |
| BVF-355R-110-110-3 | 石英/Fused Silica | 110X110X3 | 400-700nm | 355nm |
| BVF-355R-100-80-3 | 石英/Fused Silica | 100X80X3 | 400-700nm | 355nm |
| BVF-355R-90-76-3 | 石英/Fused Silica | 90x76X3 | 400-700nm | 355nm |
| BVF-355R-80-80-3 | 石英/Fused Silica | 80x80X3 | 400-700nm | 355nm |
| BVF-355R-45-3 | 石英/Fused Silica | Φ45X3 | 400-700nm | 355nm |
