CCD视觉定位用合束镜-532nm/515-540nm
The Beam Combiners for visual positioning - 532nm/515-540nm

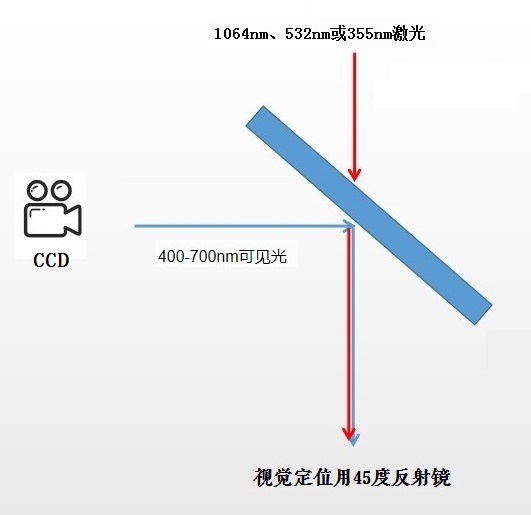

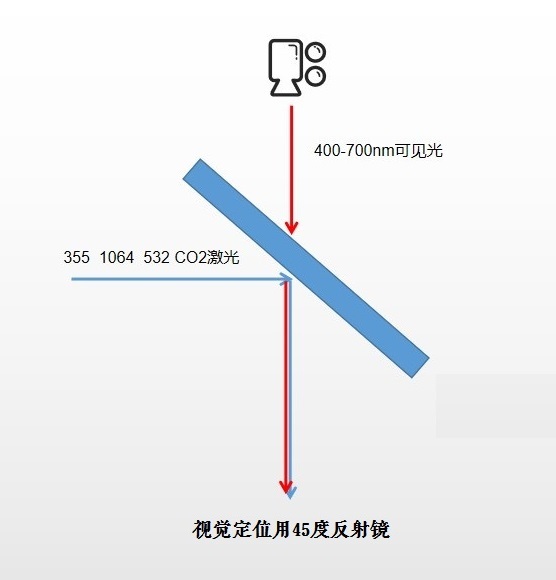

图一 激光透过，CCD（可见光）反射 图二激光反射，CCD（可见光）透过）
| 产品编号 | 材料 | 产品规格 | 透过 | 反射 |
| Product ID | Material | LXWXT/(mm) | HT 45oAOI | HR 45oAOI |
| BVF-532R-120-120-4 | 石英/Fused Silica | 120X120X4 | 400-500nm +580-700nm | 532nm |
| BVF-532R-110-110-3 | 石英/Fused Silica | 110X110X3 | 400-500nm +580-700nm | 532nm |
| BVF-532R-100-80-3 | 石英/Fused Silica | 100X80X3 | 400-500nm +580-700nm | 532nm |
| BVF-532R-90-76-3 | 石英/Fused Silica | 90x76X3 | 400-500nm +580-700nm | 532nm |
| BVF-532R-80-80-3 | 石英/Fused Silica | 80x80X3 | 400-500nm +580-700nm | 532nm |
| BVF-532R-40-3 | 石英/Fused Silica | Φ40X3 | 400-500nm +580-700nm | 532nm |
| BVF-532T-120-120-4 | 石英/Fused Silica | 120X120X4 | 532nm | 400-500nm +580-700nm |
| BVF-532T-110-110-3 | 石英/Fused Silica | 110X110X3 | 532nm | 400-500nm +580-700nm |
