分光镜-10.6µm
Beam splitters
普通的分光镜用来分开或合并激光光束。偏振分光镜则是用来分开或合并两个正交偏振态的激光束。
我们的偏振分光镜，是指波长为 10.6µm的光以 45°入射时，s 偏振和 p 偏振的透射率/反射率会是不同的,
分光镜的性能主要决定于其镀膜特性。我们可以根据需要定制产品。
| 产品编号 | 材料 | 直径 | 厚度 | 第一面反射率 | 偏振 | |||
| Product ID | Material | Diameter | Thickness | Side1(%R) | Polarization | |||
| BS-10.6Z-25.4-3P-R50% | ZnSe | Φ25.4mm | 3.0mm | 50% | P-Pol | |||
| BS-10.6Z-25.4-3S-R50% | ZnSe | Φ25.4mm | 3.0mm | 50% | s-Pol | |||
| BS-10.6Z-25.4-3-R50% | ZnSe | Φ25.4mm | 3.0mm | 50% | Insensitive | |||
| BS-10.6Z-25.4-3P-R95% | ZnSe | Φ25.4mm | 3.0mm | 95% | P-Pol | |||
| BS-10.6Z-25.4-3S-R95% | ZnSe | Φ25.4mm | 3.0mm | 95% | s-Pol | |||
| BS-10.6Z-25.4-3-R95% | ZnSe | Φ25.4mm | 3.0mm | 95% | Insensitive | |||
| BS-10.6Z-25.4-3P-R90% | ZnSe | Φ25.4mm | 3.0mm | 90% | P-Pol | |||
| BS-10.6Z-25.4-3S-R90% | ZnSe | Φ25.4mm | 3.0mm | 90% | s-Pol | |||
| BS-10.6Z-25.4-3-R90% | ZnSe | Φ25.4mm | 3.0mm | 90% | Insensitive | |||

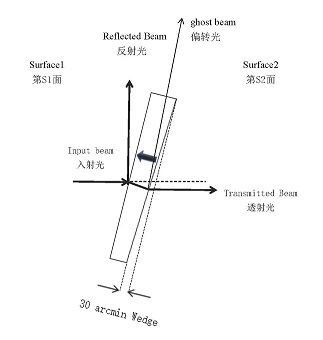

示意图
