窗口-1064nm

窗口-1064nm /1030-1090nm

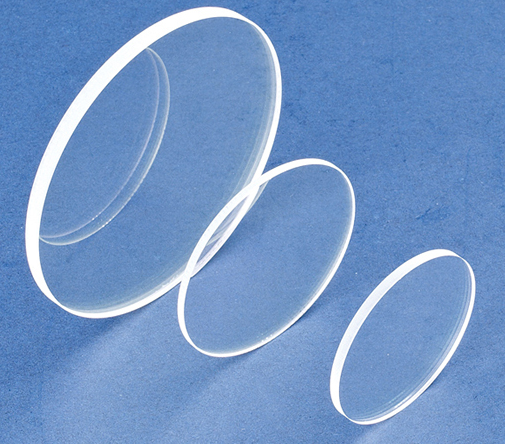

窗口镜被用来在允许光束通过的情况下隔离物理空间,窗口上通常要镀上增透膜以减少光能损耗。

保护窗口可以保护内部光学元件免遭飞溅物和工作场所内其他危害的影响。

产品编号	材料	直径X厚度/长X宽X厚度	波长
Product ID	Material	DiaXT/ LXWXT	Wavelength
Product ID	Material	(mm)	(nm)
WSK9-1064-20-2	H-K9L	Φ20X2	1064nm
WSFS-1064-20-2	fused silica	Φ20X2	1064nm
WSK9-1064-20-3	H-K9L	Φ20X3	1064nm
WSFS-1064-20-3	fused silica	Φ20X3	1064nm
WSK9-1064-20-4	H-K9L	Φ20X4	1064nm
WSFS-1064-20-4	fused silica	Φ20X4	1064nm
WSK9-1064-20-5	H-K9L	Φ20X5	1064nm
WSFS-1064-20-5	fused silica	Φ20X5	1064nm
WSK9-1064-25-3	H-K9L	Φ25X3	1064nm
WSFS-1064-25-3	fused silica	Φ25X3	1064nm
WSK9-1064-25-5	H-K9L	Φ25X5	1064nm
WSFS-1064-25-5	fused silica	Φ25X5	1064nm
WSK9-1064-25.4-3	H-K9L	Φ25.4X3	1064nm
WSFS-1064-25.4-3	fused silica	Φ25.4X3	1064nm
WSK9-1064-25.4-5	H-K9L	Φ25.4X5	1064nm
WSFS-1064-25.4-5	fused silica	Φ25.4X5	1064nm
WSK9-1064-28-5	H-K9L	Φ28X5	1064nm
WSFS-1064-28-5	fused silica	Φ28X5	1064nm
WSK9-1064-30-3	H-K9L	Φ30X3	1064nm
WSFS-1064-30-3	fused silica	Φ30X3	1064nm
WSK9-1064-30-4	H-K9L	Φ30X4	1064nm
WSFS-1064-30-4	fused silica	Φ30X4	1064nm
WSK9-1064-30-5	H-K9L	Φ30X5	1064nm
WSFS-1064-30-5	fused silica	Φ30X5	1064nm
WSK9-1064-36-2	H-K9L	Φ36X2	1064nm
WSFS-1064-36-2	fused silica	Φ36X2	1064nm
WSK9-1064-38-3	H-K9L	Φ38X3	1064nm
WSFS-1064-38-3	fused silica	Φ38X3	1064nm
WSK9-1064-40-2	H-K9L	Φ40X2	1064nm
WSFS-1064-40-2	fused silica	Φ40X2	1064nm
WSK9-1064-40-3	H-K9L	Φ40X3	1064nm
WSFS-1064-40-3	fused silica	Φ40X3	1064nm
WSK9-1064-40-5	H-K9L	Φ40X5	1064nm
WSFS-1064-40-5	fused silica	Φ40X5	1064nm
WSK9-1064-44-2	H-K9L	Φ44X2	1064nm
WSFS-1064-44-2	fused silica	Φ44X2	1064nm
WSK9-1064-45-3	H-K9L	Φ45X3	1064nm
WSFS-1064-45-3	fused silica	Φ45X3	1064nm
WSK9-1064-50-2	H-K9L	Φ50X2	1064nm
WSFS-1064-50-2	fused silica	Φ50X2	1064nm
WSK9-1064-50-3	H-K9L	Φ50X3	1064nm
WSFS-1064-50-3	fused silica	Φ50X3	1064nm
WSK9-1064-55-2	H-K9L	Φ55X2	1064nm
WSFS-1064-55-2	fused silica	Φ55X2	1064nm
WSK9-1064-60-2	H-K9L	Φ60X2	1064nm
WSFS-1064-60-2	fused silica	Φ60X2	1064nm
WSK9-1064-75-2	H-K9L	Φ75X2	1064nm
WSFS-1064-75-2	fused silica	Φ75X2	1064nm
WSK9-1064-75-3	H-K9L	Φ75X3	1064nm
WSFS-1064-75-3	fused silica	Φ75X3	1064nm
WSK9-1064-80-3	H-K9L	Φ80X3	1064nm
WSFS-1064-80-3	fused silica	Φ80X3	1064nm
WSK9-1064-88-3	H-K9L	Φ88X3	1064nm
WSFS-1064-88-3	fused silica	Φ88X3	1064nm
WSK9-1064-100-3	H-K9L	Φ100X3	1064nm
WSFS-1064-100-3	fused silica	Φ100X3	1064nm
WSK9-1064-110-3	H-K9L	Φ110X3	1064nm
WSFS-1064-110-3	fused silica	Φ110X3	1064nm
WSK9-1064-115-4	H-K9L	Φ115X4	1064nm
WSFS-1064-115-4	fused silica	Φ115X4	1064nm
WSK9-1064-120-5	H-K9L	Φ120X5	1064nm
WSFS-1064-120-5	fused silica	Φ120X5	1064nm
WSK9-1064-130-4	H-K9L	Φ130X4	1064nm
WSFS-1064-130-4	fused silica	Φ130X4	1064nm
WSK9-1064-150-4	H-K9L	Φ150X4	1064nm
WSFS-1064-150-4	fused silica	Φ150X4	1064nm
WSK9-1064-80-80-3	H-K9L	80X80X3	1064nm
WSFS-1064-80-80-3	fused silica	80X80X3	1064nm
WSK9-1064-100-80-3	H-K9L	100X80X3	1064nm
WSFS-1064-100-80-3	fused silica	100X80X3	1064nm
WSK9-1064-100-100-3	H-K9L	100X100X3	1064nm
WSFS-1064-100-100-3	fused silica	100X100X3	1064nm
WSK9-1064-105-78-3	H-K9L	105X78X3	1064nm
WSFS-1064-105-78-3	fused silica	105X78X3	1064nm
WSK9-1064-110-80-3	H-K9L	110x80x3	1064nm
WSFS-1064-110-80-3	fused silica	110x80x3	1064nm
WSK9-1064-110-90-6	H-K9L	110x90x6	1064nm
WSFS-1064-110-90-6	fused silica	110x90x6	1064nm
WSK9-1064-120-120-3	H-K9L	120x120X3	1064nm
WSFS-1064-120-120-3	fused silica	120x120X3	1064nm
WSK9-1064-120-120-4	H-K9L	120x120X4	1064nm
WSFS-1064-120-120-4	fused silica	120x120X4	1064nm

说明：保护窗口主要有2种材料：K9玻璃和石英材料。

保护窗口尺寸规格很多，本表仅列出了部分产品规格。如有需要，请咨询销售人员。
